    • Sonics ultrasonic processors
      •

    • VC750
      •

    • Power 750W, standard amplitude rod processing volume from 50ml to 500ml.
      •











    • VC750
      •

    • Sonics ultrasonic processors
      •

    • Power 750W, standard amplitude rod processing volume from 50ml to 500ml.
      •

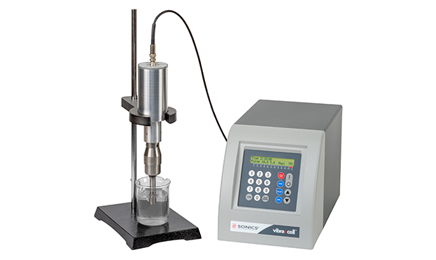

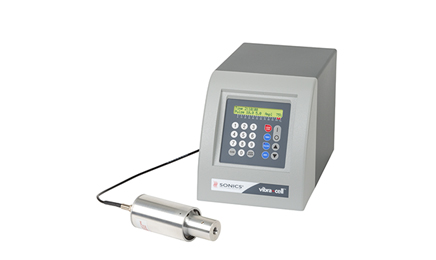

                        Sonics ultrasonic processors VC750 is capable of safely processing various organic and inorganic materials ranging from 250 microliters up to 1 liter*. Typical applications include nanotechnology (production of nanoparticle materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP assay, emulsification, dispersion, and degassing, as well as applications in the field of sonochemistry liquid processing.




















						Product Introduction





						Sonics ultrasonic processors VC750 is capable of safely processing various organic and inorganic materials ranging from 250 microliters up to 1 liter*. Typical applications include nanotechnology (production of nanoparticle materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP assay, emulsification, dispersion, and degassing, as well as applications in the field of sonochemistry liquid processing.





















							Product Features





							◆Energy monitor





							◆Digital power meter





							◆Integrated temperature controller to prevent overheating of samples, monitoring and controlling sample processing temperature in the range of 1℃ to 100℃

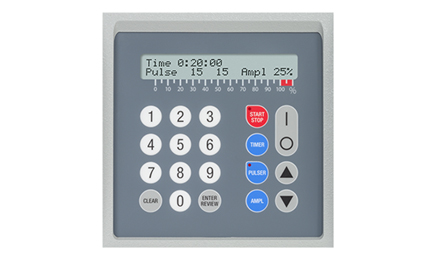

							◆Based on microprocessor and programmable technology





							◆10-hour process timer





							◆Independent on/off pulse generator





							◆Variable power output control





















								Experiment Objectives





								1. Understand the basic principles of ultrasonic cell disruption





								2. Master the basic techniques of ultrasonic cell disruption





















									Experimental Principle





									When strong sound waves act on a solution, the cavitation phenomenon of bubble generation, growth, and fragmentation is related to the cell lysis. The shock wave and shear force caused by the cavitation phenomenon cause the cells to break.





									Materials and Reagents

									10ml bacteria, beaker, crushed ice, 75% alcohol cotton ball.





















										Probe Selection







										Probe Model and Size

										Capacity for Cell Disruption





										2mm

										150ul－5ml





										3mm

										250ul－10ml





										6mm

										10ml－50ml





										10mm

										10ml－250ml





										13mm

										50ml－500ml





















											Technical Parameters







											Model:

											VC 750





											Frequency:

											20KHz





											Power:

											750W





											Standard amplitude bar:

											Φ13mm





											Standard amplitude bar length:

											136mm





											Amplitude bar overall size:

											235 x 190 x 340 mm





											Amplitude bar material:

											Titanium alloy Ti-6Al-4V





											Standard amplitude bar processing capacity:

											50ml to 250ml





											Optional amplitude bars:

											Φ2mm, Φ3mm, Φ6mm, Φ10mm





											Amplitude bar weight:

											900g





											Crushing capacity:

											50-500ml





											Duty cycle:

											1-99%





											Power adjustment range:

											Continuously adjustable (20-750w)





											Interval time:

											0.1-99.9s





											Temperature protection setting:

											/





											Power amplitude display:

											Yes





											Working frequency range:

											Energy monitor digital wattmeter, automatic tuning and automatic amplitude compensation





											Working time:

											Microprocessor-based - programmable 10-hour timer 1-59 second independent/on/off pulse





											Ultrasonic time:

											From 1 second to 10 hours





											Working mode:

											Interval/continuous





											Power supply:

											220/110V 50Hz/60Hz or 117V, 50/60Hz unless otherwise specified





											Net weight:

											6.8kg





											Main unit + transducer weight:

											3680g



























	Product List












                	        VC750
                            Unit





                	            Host Machine
                                Unit





                	            Toolbox
                                set





                	            Power cord
                                piece





                	            Soundproof box
                                set





                	            Special Crushing Cup
                                Piece





                	            User manual
                                copy






















    Description


    1
    1
    1
    Optional
    Optional
    1
